Oil Country Tubular Goods (OCTG) machining requires specialized CNC lathes capable of handling long pipes, large diameters, and demanding threading operations. A CNC lathe with a large spindle bore allows pipes to pass through the headstock, making it suitable for oil pipe turning, threading, and end preparation.
For OCTG manufacturers and oilfield service companies, selecting the correct spindle bore, chuck configuration, and pipe support system is essential for stable machining and consistent thread quality.

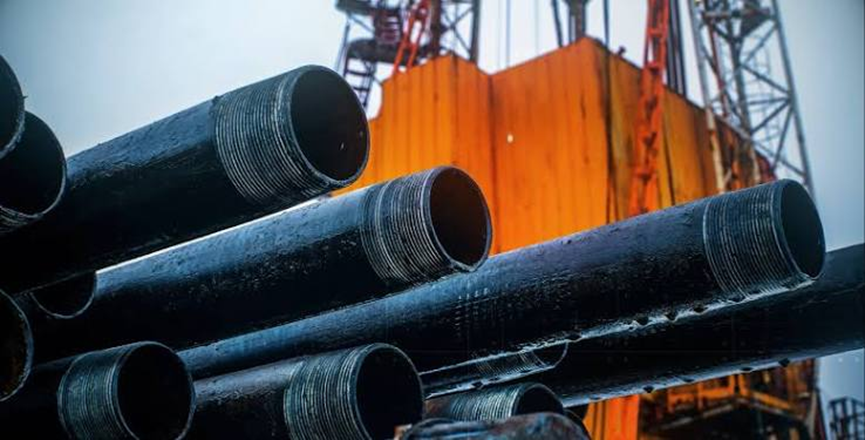

OCTG products are widely used in oil and gas exploration, drilling, and production.
CNC pipe threading lathes are commonly used by:
· Oil and gas pipe manufacturers
· OCTG processing factories
· Oilfield equipment suppliers
· Pipe threading workshops
· Oilfield pipe repair and maintenance companies
These industries require machines that can process different pipe diameters, materials, and thread specifications while maintaining reliable production efficiency.
Typical OCTG workpieces include:

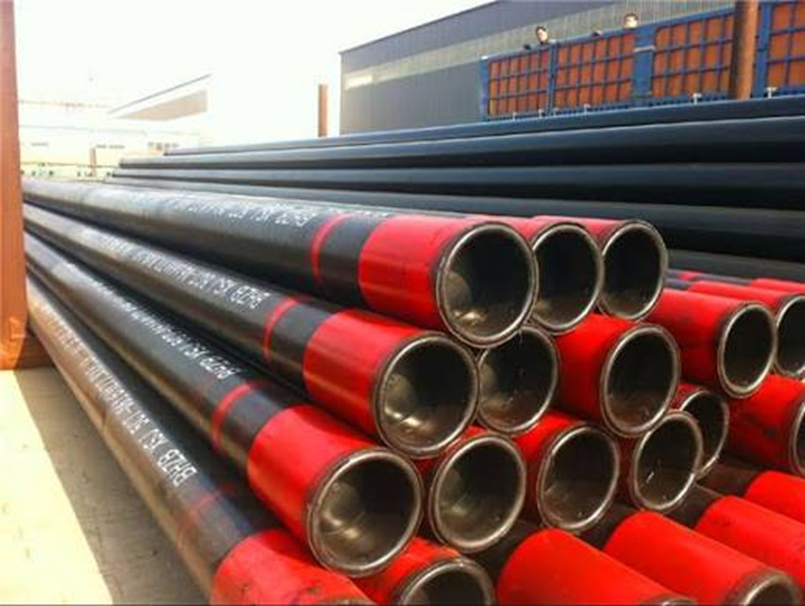

Casing Pipes: Large-diameter steel pipes used to support and protect oil and gas wells.
Tubing Pipes: Pipes used to transport oil and gas from the well to the surface.
Drill Pipes: High-strength tubular components used in drilling operations.
Pipe Couplings: Connecting components requiring internal turning, boring, and threading.
These workpieces vary in outside diameter, wall thickness, length, and thread requirements.
For long pipes, a large spindle bore allows the workpiece to extend through the headstock, reducing the need for an excessively long machine bed when only the pipe ends require machining.
A typical OCTG pipe-end machining process includes:
Pipe Loading → Clamping → Facing → OD/ID Turning → Chamfering → Thread Cutting → Inspection
During machining, the pipe is held by the chuck system while the cutting tool performs the required operations.

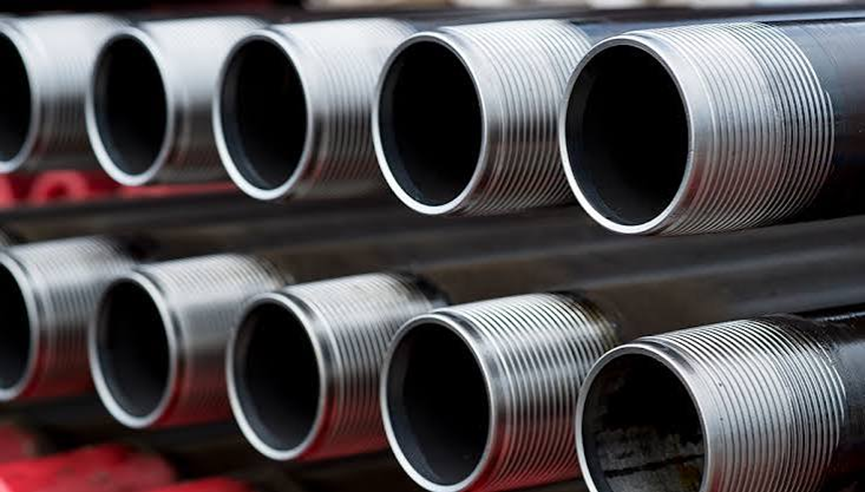

Depending on the thread specification, the machine may produce API 5B, tapered, metric, or imperial threads.
For long and heavy pipes, rear pipe supports or steady rests help maintain workpiece stability and reduce vibration.
The actual machining process depends on pipe dimensions, connection design, material, and required thread standard.
The spindle bore must accommodate the maximum pipe outside diameter that needs to pass through the spindle.
However, spindle bore is not the same as pipe threading capacity. Buyers must check both specifications, together with the chuck's available passage clearance.
A double-chuck arrangement provides two clamping positions along the spindle, helping stabilize long pipes during turning and threading.
Manual, pneumatic, or hydraulic chuck configurations can be selected according to production requirements.
Large-diameter steel pipes generally require relatively low spindle speeds and sufficient torque for stable cutting.
Spindle performance should be evaluated according to pipe diameter, material, and cutting load.

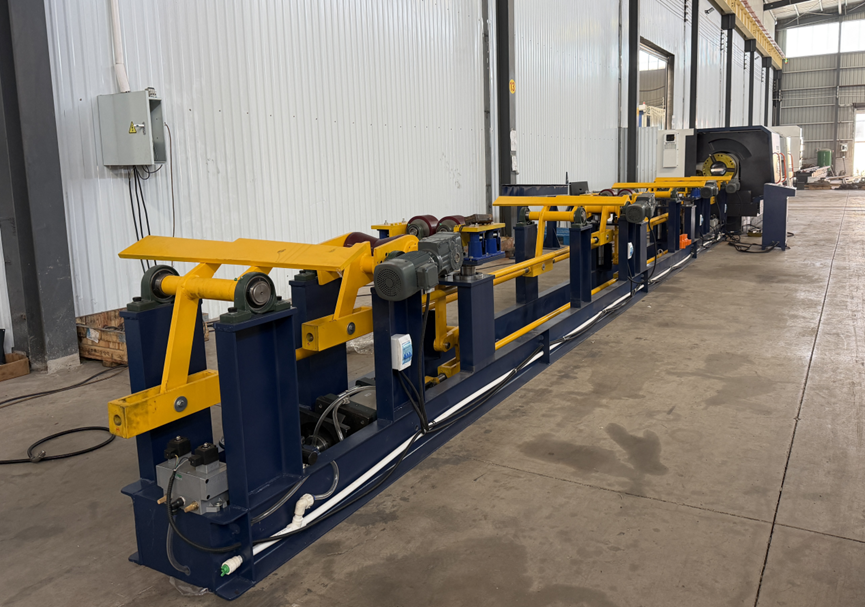

Rear pipe supports, hydraulic steady rests, and automatic loading systems can improve workpiece handling and production efficiency.
For repeated OCTG production, automatic clamping and material handling can reduce manual operations.
Anyang Xinheng Machine Tool offers CNC pipe threading lathes with different spindle bore sizes and machining capacities.
The following models are suitable for different OCTG pipe diameter requirements.
Model | Spindle Bore | Pipe Threading Range |
QK1219 | Φ200 mm | Φ50–193 mm |
QK1222 | Φ225 mm | Φ50–220 mm |
QK1225 | Φ255 mm | Φ50–250 mm |
QK1227 | Φ280 mm | Φ70–275 mm |
QK1232 (755 mm guideway) | Φ330 mm | Φ190–320 mm |
QK1238 | Φ390 mm | Φ190–380 mm |
QK1250 | Φ520 mm | Φ330–510 mm |
QK1263 | Φ640 mm | Φ330–630 mm |
Specifications based on Xinheng's 550/600 mm and heavy-duty pipe threading lathe series.
For medium-diameter casing and tubing, the QK1219, QK1222, and QK1225 models offer practical machining solutions.
For larger OCTG pipes, the QK1232, QK1238, QK1250, and QK1263 models provide larger spindle bores and heavier-duty configurations.
The final machine selection should consider pipe outside diameter, wall thickness, length, weight, thread standard, chuck configuration, and production volume.
Looking for a CNC lathe for OCTG pipe machining?
Send us your pipe drawings, diameter, length, material, and threading requirements. We can recommend a suitable large-bore CNC lathe and pipe handling solution.
